RX®ww 6996-O
RX®ww 6996-O DESCRIPTION
| Specification | EN14700 |
| clas.code | T Fe10 |
|
Typical All-Weld metal analysis |
|||||
|
C |
Si | Mn | Cr | Ni | Fe |
| 0.1 | 0.50 | 6.0 | 19 | 9 |
Bal |
|
Typical All-weld metal mechanical properties |
|
|
Hardness |
(3-layer deposit) |
|
As welded |
180-200HB |
| Work hardened |
47HRC |
|
General characteristics |
|
|
Microstructure |
austenite |
|
Machinability |
grinding only |
|
Oxyacetylene cutting |
cannot be flame out |
|
Deposit thickness |
2 to 9 mm maximum in 1-2 layers |
| Shielding gas |
- |
|
Operating conditions |
||||||
|
Diameter(mm) |
Current(A) |
Voltage(V) | Stick-out(mm) | |||
| range | optimum | range | optimum | range |
optimum |
|
|
1.6 |
150-350 |
270 | 24-35 | 28 | 25-50 |
25 |
|
2.8 |
250-450 |
400 | 26-35 | 30 | 25-50 |
40 |

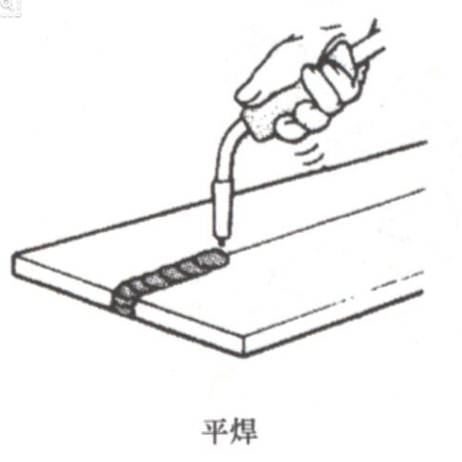

| Welding positions | Flat |
|
Packaging |
|||
|
Diameter（mm） |
1.6 | 2.4 | 2.8 |
|
Standard packaging |
Coil/Drum |
Coil/Drum |
Coil/Drum |
| Weight | 15kg /250kg | 50kg /250kg |
50kg /250kg |
Other packaging and other diameters: please consult us
Welding products and techniques evolve constantly. All descriptions, illustrations and properties given in this data sheet are subject to change without notice and can only be considered as suitable for general guidance. This document is intended to help the user make the correct choice of product. It is his responsibility to assess its suitability for his intended application.
6996-O is mainly used to rebuild components exposed to high impact and corrosion Sub-layer before hardfacing, particularly on manganese steels and “hard to weld” steels Buffer layers for welding on black manganese steel, for welding on hardenable steel and for welding of hardfacings.Hardfacing on rails, switches, tumblers, striking pins, components subjected to thermal stress, e.g. in rockwool production Examples : Steel mill rolls, metallurgical plant guides, tram and train rails and crossings, high speed forming rolls.
