CCO Chromium Carbide Overlay Wear Plate for Smith Vertical Roller Mill
Product Introduction
Runxing customized CCO wear resistant hardfacing plate is specially designed as replacement spare parts for all models of Smith vertical roller mills, including grinding table liner, roller shell protective plate, air guide cone liner, chute liner and other wear components.
Manufactured by fully automatic submerged arc hardfacing welding technology, high chromium carbide alloy overlay is metallurgically bonded on low carbon steel base plate, no delamination, no crack, smooth overlay surface.
Our Smith mill wear plates can be customized in any size, thickness and shape according to original equipment drawings, supporting cutting, bending, drilling, bolt hole processing to fit Smith vertical mill installation perfectly.
Core Technical Parameters
1. Base material: Q235 / Q345 mild carbon steel
2. Overlay alloy: High chromium carbide Cr7C3
3. Carbide volume fraction: ≥50%
4. Surface hardness: HRC 57–62; Overlay thickness over 10mm reaches HRC62+
5. Thickness tolerance: ±0.3mm, Flatness tolerance: ±3mm/m
6. Wear resistance: 20 times longer service life than mild steel, 8 times longer than heat treated steel plate
7. Standard thickness combination: 3+3mm ~ 12+50mm customizable
Key Advantages
1. Professional matching for Smith vertical mill, one-to-one replacement for original wear liners
2. Smooth overlay surface, uniform carbide distribution, stable wear resistance
3. Metallurgical composite structure, anti-peeling, anti-impact, long service cycle
4. Support full deep processing: cutting, bending, punching, forming per customer drawings
5. Factory direct production, strict full inspection before delivery, stable quality
6. Supply matching SAW / FCAW hardfacing wire for on-site maintenance of Smith mill
Application Scope
Mainly used as wear spare parts for Smith vertical roller mill in cement, mineral processing, thermal power industry:
Grinding table liner, roller protective liner, air guide cone lining, nozzle ring guard, feeding chute liner, mill shell lining plate, transfer hopper wear plate.
Company Introduction
Tangshan Runxing Machinery Co., Ltd., a professional manufacturer located in Tangshan, Hebei Province that focuses on R&D, production and on-site construction service of hardfacing wear-resistant metal products, was founded in 2010.
Our main products include chromium carbide overlay (CCO) wear plates, custom processed wear liners, wear-resistant pipes and pipe fittings, hardfacing flux-cored welding wires, automatic hardfacing welding machines, and professional roller surfacing repair service. We follow the business idea of “Integrity, Superior Quality, Innovation & Sustainable Development” and own mature advanced metal surface hardfacing technology.
We provide customized wear-resistant solutions for cement, steel, mining, port and dredging industries around the world, and have gained good market reputation in Russia and Central Asia.
All export business is fully authorized and handled by Hebei Yuwan International Trade Co., Ltd. This trading company completes all export work including customs clearance, shipment, documents and payment collection. Our factory focuses on product development and production to ensure stable product quality and on-time delivery.
Runxing Machinery sincerely hopes to establish long-term cooperation and achieve mutual benefit with you!

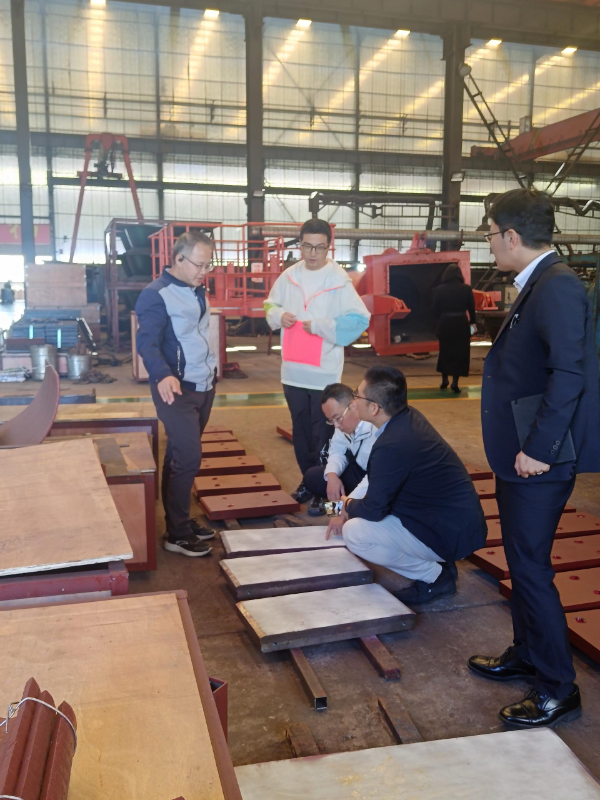

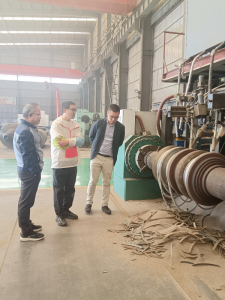

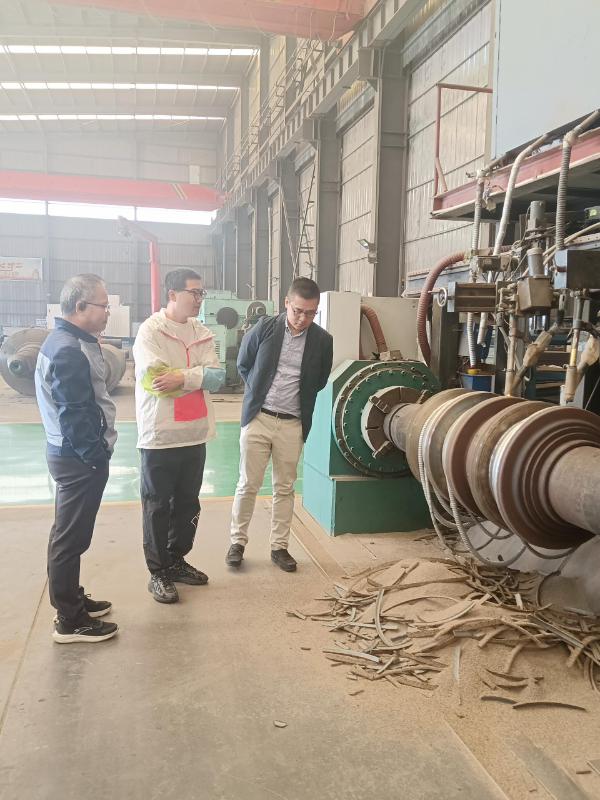

Exhibition
FAQ
A:Of course, we can provide customers with free samples but customer should pay the courier fee.
A:Please kindly provide the grade, width, thickness, surface treatment requirement and quantities you need to purchase.
A:Prices various according to periodic price changes of raw materials.
A: 30% T/T in advance ,balance before shipment
A: Yes,if you have your own design , we can produce according to your specification and drawing.
